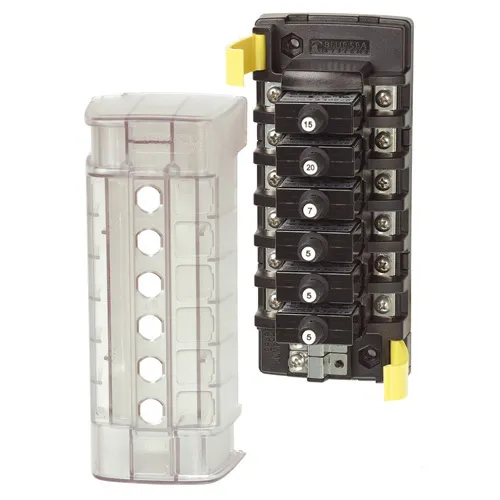

• Quick connect clips allow circuit breakers to snap easily into place
• Tin-plated copper busses and screw terminals
• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
• Easy to open clip on cover
• Breakouts allow wire access in two directions
• Accepts ring terminals
• Optional push button waterproof boots or dress nuts can be installed over cover
• Accepts square labels

  Specifications:
  Circuits: 6
  Maximum Amperage: 32A (per circuit), 40A (per jumped circuit group)
  Maximum Voltage: 32V DC
  Mounting: #8 Screw (M4) or #8 Nut
  Source: Independent Source
  Minimum Operating Temperature: -10∞ C
  Maximum Operating Temperature: 60∞ C
  Mounting Centers: 5.63in (143 mm)
  Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
  Height: 6.69in (169.93 mm)
  Weight: 0.75lb (0.34 kg)
